Description

The Maxtena M1621HCT-LP-SM is a passive Iridium antenna for RockREMOTE installations.



It's certified for use with RockREMOTE Classic and RockREMOTE Rugged, and is also suitable for RockREMOTE Mini installations where the antenna requirements match the deployment. Use it when you need an externally mounted Iridium antenna for a RockREMOTE device, especially where the antenna needs to be mounted through a panel, enclosure, vehicle body, or equipment housing.



The antenna is tuned for the 1616-1626 MHz Iridium frequency band and uses Maxtena’s Helicore technology. Its ground-plane independent design allows it to be mounted on metal, composite, or non-conductive surfaces without requiring an external ground plane.

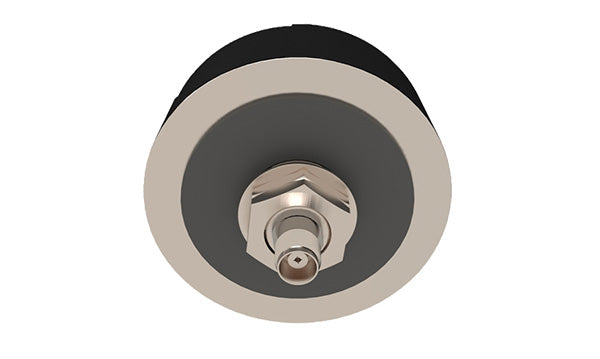

The integrated TNC female connector and permanent 19 mm through-hole mount make it a practical option for fixed or mobile RockREMOTE deployments that need a secure, externally mounted antenna with clear sky view.

Key Features

  • Validated Network Interoperability: Certified for direct use with Iridium SFX 9770, RUDICS, and Short Burst Data (SBD) services.
  • Broad Hardware Integration: Universally compatible with Iridium 9601, 9602N, 9603N, 9523N, 9522B, and 9770 SFX transceivers.
  • Rock Ecosystem Synergy: Optimized for deployment with RockBLOCK 9602, 9603, Plus, and RockREMOTE series terminal enclosures.
  • Helicore® Technology Base: Features a specialized internal design ensuring high gain, low axial ratio, and optimal hemispherical pattern control.
  • Ground Plane Independence: Operates efficiently without a localized or external metal grounding surface.
  • Industrial Durability: Enclosed in an IP66-rated and RoHS-compliant housing suited for outdoor maritime and land environments.
  • Fixed Mechanical Attachment: Implements a stable 19 mm through-hole base connection for high-vibration installations.

Tech Specifications

  • Frequency Range: 1616 – 1626 MHz
  • Polarization: Right Hand Circular Polarization (RHCP)
  • Antenna Element Peak Gain: 2.5 dBic typical
  • Peak Efficiency: 73%
  • Beamwidth: 147°
  • VSWR: 2.0:1
  • Impedance: 50 Ω
  • Physical Dimensions: 38 mm height x 79.5 mm diameter
  • Weight: 125 g
  • RF Connector / Base Mount: TNC Female / 19 mm through-hole mount
