Description

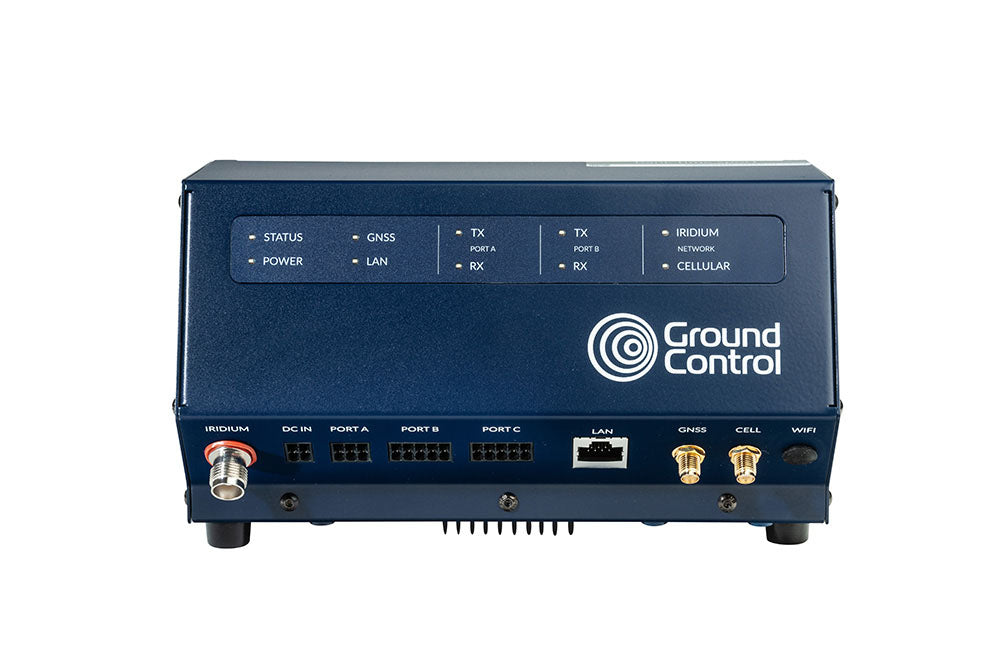

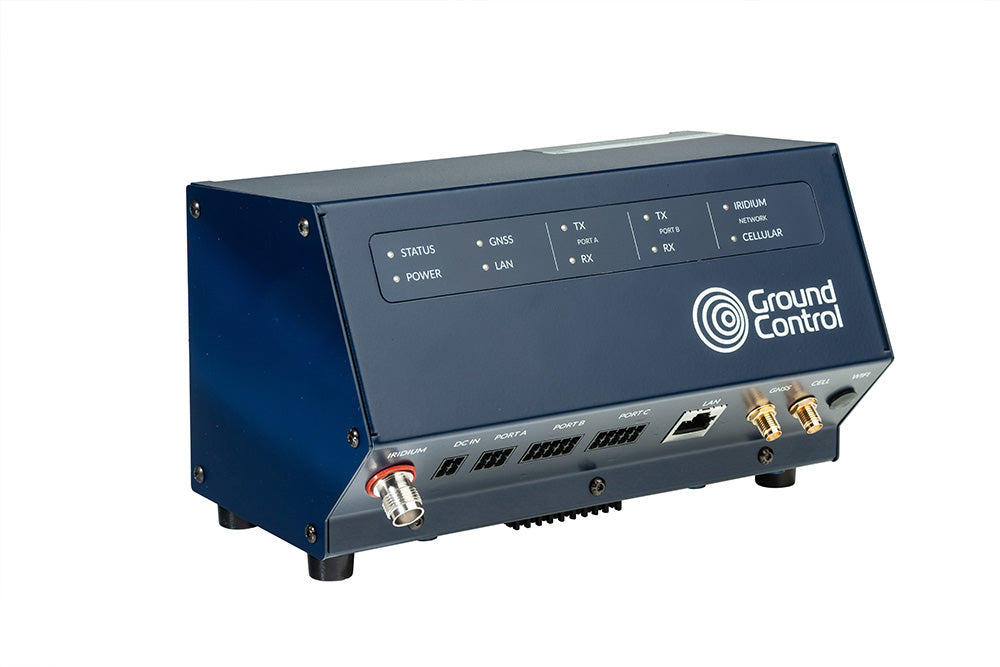

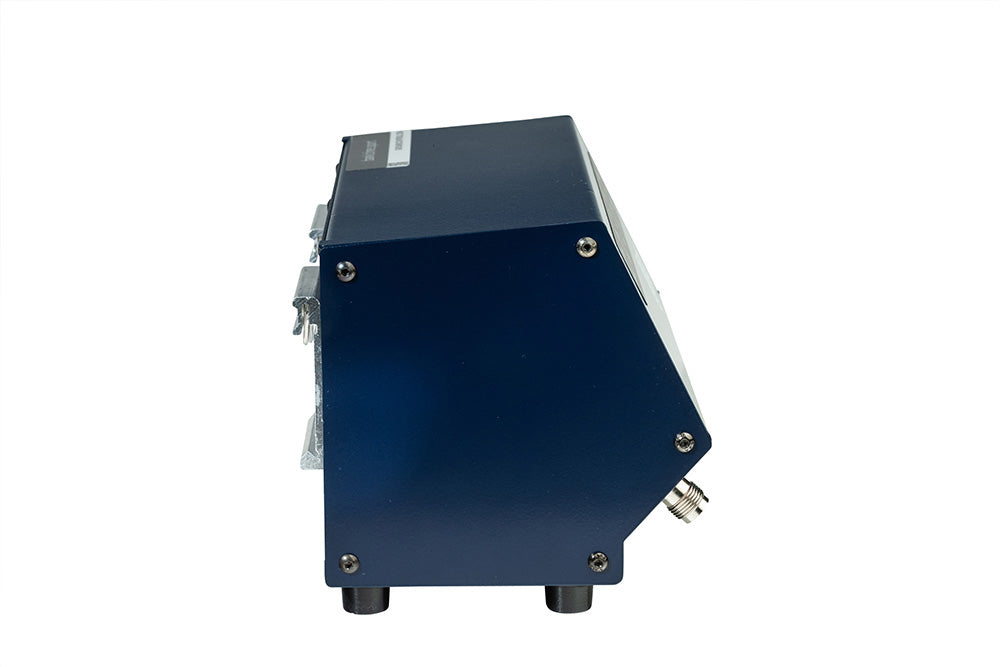

RockREMOTE is the DIN-rail mounted option in the RockREMOTE family, built for industrial cabinets, control panels, and fixed or semi-fixed remote systems.



It gives your equipment an IP path over Iridium Certus 100, with LTE available when terrestrial coverage is the better route. Use it for telemetry, remote access, SCADA-adjacent systems, gateway backhaul, and other installations where data still needs to move when the local network does not.



RockREMOTE supports Ethernet, Wi-Fi, RS232, RS485/RS422, and isolated GPIO, so it can sit alongside existing industrial equipment without forcing a full redesign. It also supports Iridium Messaging Transport, giving you a more efficient route for message-based payloads when a full IP session is not needed.



The onboard Linux compute module gives you room to host edge applications, protocol handling, data filtering, and local logic before anything is sent over the air. Supercapacitors support safe shutdown during power loss, and a dedicated hardware security module helps protect data in transit.



Choose RockREMOTE when you need satellite and cellular connectivity in a cabinet-friendly industrial terminal. Choose RockREMOTE Rugged when you need a sealed, externally mounted device for harsher outdoor installations.

Key Features

  • Hybrid Connectivity: Seamless switching between Satellite and LTE to maintain uptime in the most challenging locations.
  • Edge Computing: On-device processing capabilities to reduce data overhead and latency.
  • Versatile I/O: Comprehensive input/output interfaces for connecting to diverse sensors and industrial equipment.
  • Industrial Hardened: Built to withstand harsh field conditions and continuous operation.
  • API-Ready: Fully compatible with enterprise workflows for direct data integration.

Tech Specifications

  • Satellite network: Iridium Certus 100
  • Satellite transceiver: Iridium Certus 9770
  • Satellite throughput: 22 Kbps up / 88 Kbps down
  • Cellular: LTE module, regional variants
  • SIM: 2 × standard 2FF SIM slots
  • Wi-Fi: 802.11n, 2.4 GHz
  • Data transport: IP data and Iridium Messaging Transport, IMT
  • Ethernet: 1 × RJ45
  • Serial: 1 × RS232, 1 × RS485 / RS422
  • GPIO: 8 × isolated GPIOs
  • Processor: quad-core 1.5 GHz Cortex-A72
  • Memory: 2 GB RAM
  • Storage: 8 GB Flash
  • Operating system: Linux
  • Power input: 10–30V DC
  • Power consumption: 0.2W sleep, 5W idle, 9W transmit
  • Backup power: supercapacitors for safe shutdown
  • Power connector: spring-loaded header socket

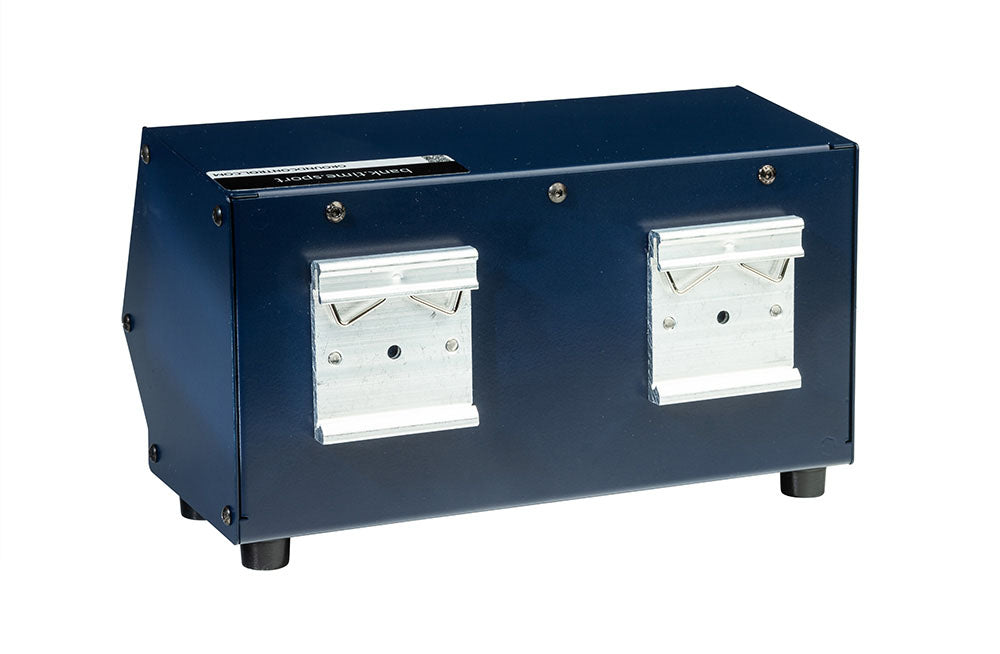

  • Mounting: DIN rail
  • Dimensions: 193.3 × 120.3 × 117.0 mm
  • Weight: 1,263 g
  • Satellite antenna: passive omnidirectional Certus 100 antenna
  • Antenna connector: external antenna via cable assembly
  • Operating temperature: -40°C to +70°C
  • Ingress protection: IP5x dust
  • Security: dedicated hardware security module
  • Cloud support: Cloudloop Data, AWS IoT Core, Google Cloud IoT, Azure IoT Hub.

Cloudloop Platform

RockREMOTE is fully integrated with the Cloudloop platform, providing centralized visibility and control over your hardware.

Cloudloop facilitates remote configuration, usage monitoring, and billing, while enabling direct integration with cloud IoT services such as AWS IoT Core, Google Cloud IoT, and Azure IoT Hub.

What’s In The Box

Every shipped package contains a complete deployment kit comprising one RockREMOTE industrial terminal with an Iridium SIM card pre-installed, one external passive omnidirectional Certus 100 antenna, one 9 meter low loss antenna cable assembly, and one 1 meter DC power cable assembly equipped for direct connection to the terminal's spring-loaded power socket.

RockREMOTE

SKU:FP-RR-9770

Frequently Asked questions

RockREMOTE features two standard (2FF) SIM card slots (one satellite, one cellular). Airtime subscriptions and SIM activation must be configured separately within the Cloudloop platform prior to field deployment.

The hardware runs a Linux-based operating system that interfaces with host microcontrollers or existing industrial computers over TCP/IP Ethernet or standard serial links using programmatic edge APIs.

The device requires a passive omnidirectional Iridium Certus 100 antenna connected via a certified low-loss RF cable (such as LMR400, max 9m / 1.6dB max loss) terminated with a TNC male connector at the terminal end.

An omnidirectional Certus 100 Antenna and 9M LMR400 antenna connection cable is included with the purchase of a RockREMOTE
