Description

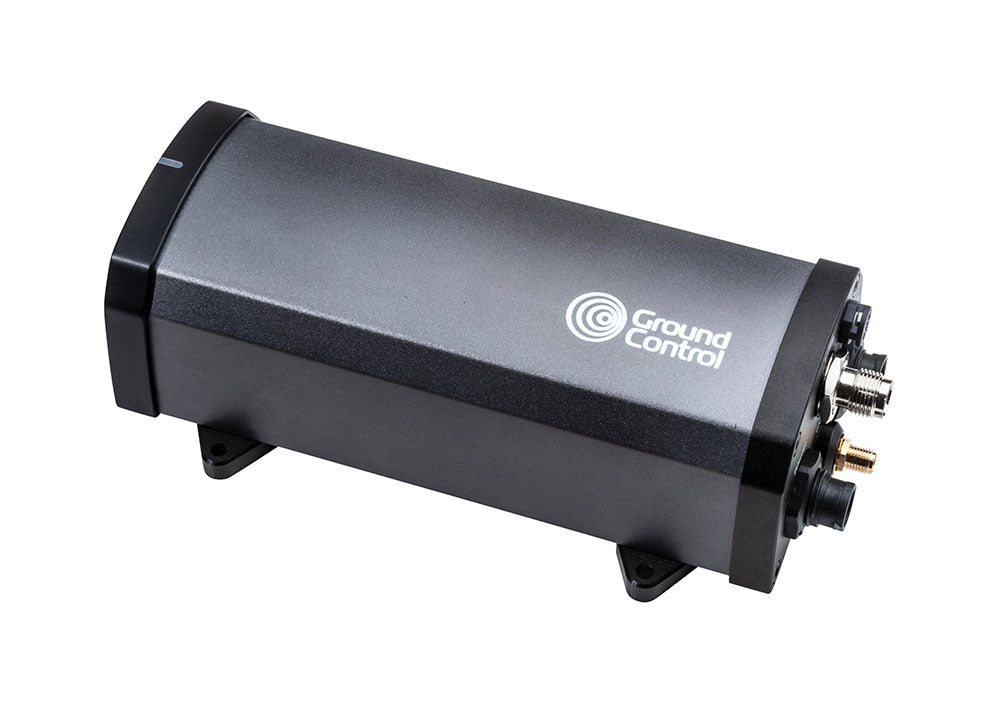

RockREMOTE Mini is a compact Iridium Certus 100 terminal for adding satellite IP connectivity to remote equipment without building your own enclosure or board-level integration.



Use it when your system needs an IP path beyond terrestrial networks, with Ethernet, serial, and GPIO interfaces for connecting to field equipment, controllers, sensors, and host systems. It also supports Iridium Messaging Transport, so you can send compact message-based payloads when a full IP session is more than you need.

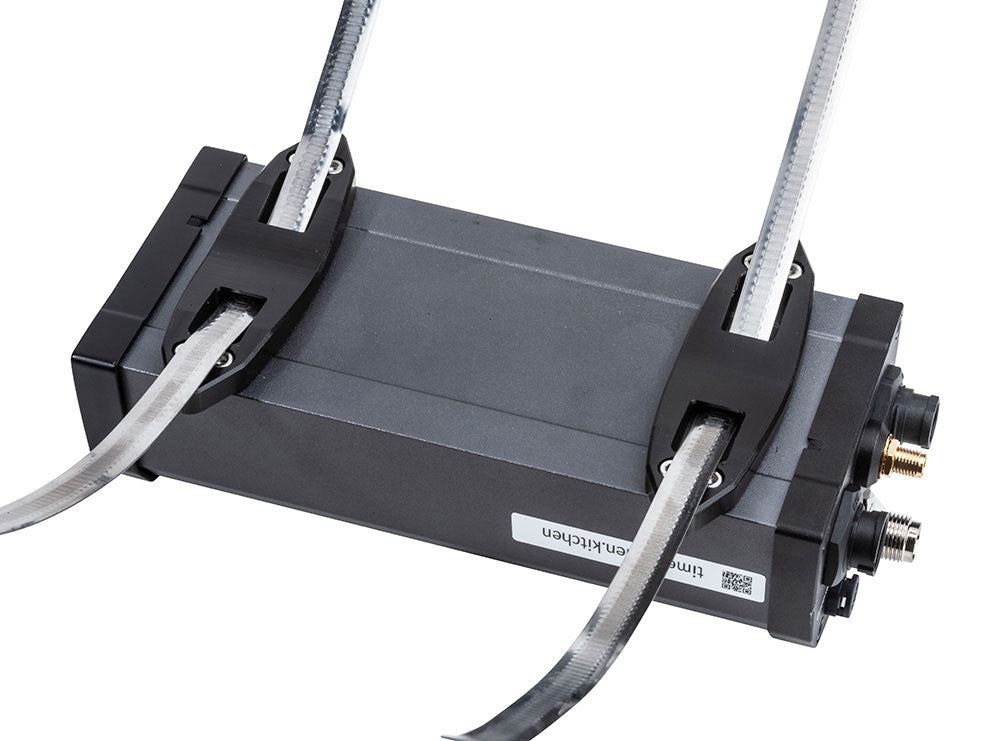

Mini is built for low power remote deployments, with 10–30V DC input, PoE support, 300mW typical idle receive mode, and sleep mode below 36mW at 12V. The IP66 enclosure is designed for permanent outdoor installation, with mounting options for fixed or mobile deployments.



Choose RockREMOTE Mini when you want Certus 100 connectivity in a small field-ready terminal. Choose Mini OEM when you want the same core capability built into your own product.

Key Features

  • Iridium Certus 100: Satellite IP over the Iridium LEO network, with no antenna pointing required
  • IP + IMT messaging: Use TCP/IP over Ethernet, or IMT for compact message-based payloads up to 100 KB
  • 22 Kbps up / 88 Kbps down: Midband satellite connectivity for remote systems beyond terrestrial networks
  • Low power operation: 300mW typical idle receive mode, with sleep below 36mW at 12V or 75mW at 24V
  • Flexible power input: Power via 10–30V DC or Power over Ethernet
  • Outdoor ready enclosure: IP66-rated casing for fixed or mobile outdoor installations
  • Industrial interfaces: Ethernet, RS232, RS485, and configurable GPIO for connecting field equipment
  • Local and remote configuration: Configure over BLE, Cloudloop, or the developer API.

Tech Specifications

  • Network: Iridium Certus 100 LEO
  • Data transport: IP data and Iridium Messaging Transport, IMT
  • Throughput: up to 22 Kbps upload / 88 Kbps download
  • IMT message size: up to 100 KB
  • Processor: ARM Cortex-M7, 400 MHz
  • Memory: 564 KB RAM
  • Storage: 1 GB onboard Flash
  • Operating system: FreeRTOS
  • Power input: 10–30V DC or Power over Ethernet, PoE
  • Power consumption: 300mW typical idle receive mode; <36mW sleep at 12V
  • Interfaces: 10/100 Ethernet, RS232, RS485, isolated GPIO

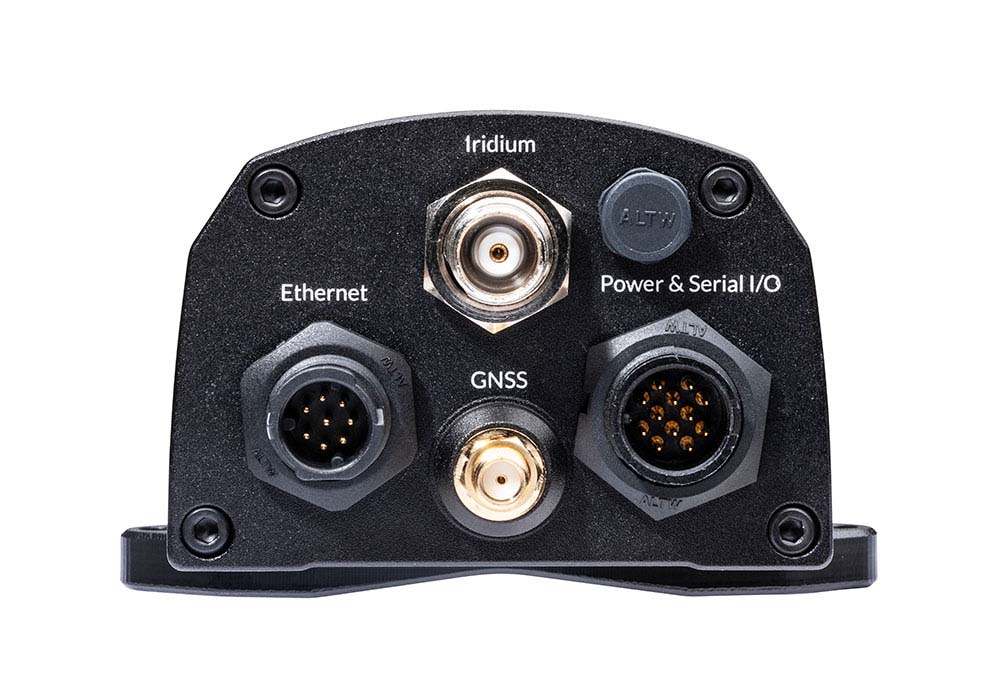

  • Connectors: 12-pin circular connector for power, serial, and GPIO; 8-pin circular connector for Ethernet
  • RF connectors: TNC female for Iridium Certus 100; SMA female for GNSS
  • GNSS: GPS, Galileo, and QZSS
  • Local configuration: Bluetooth Low Energy 5.0

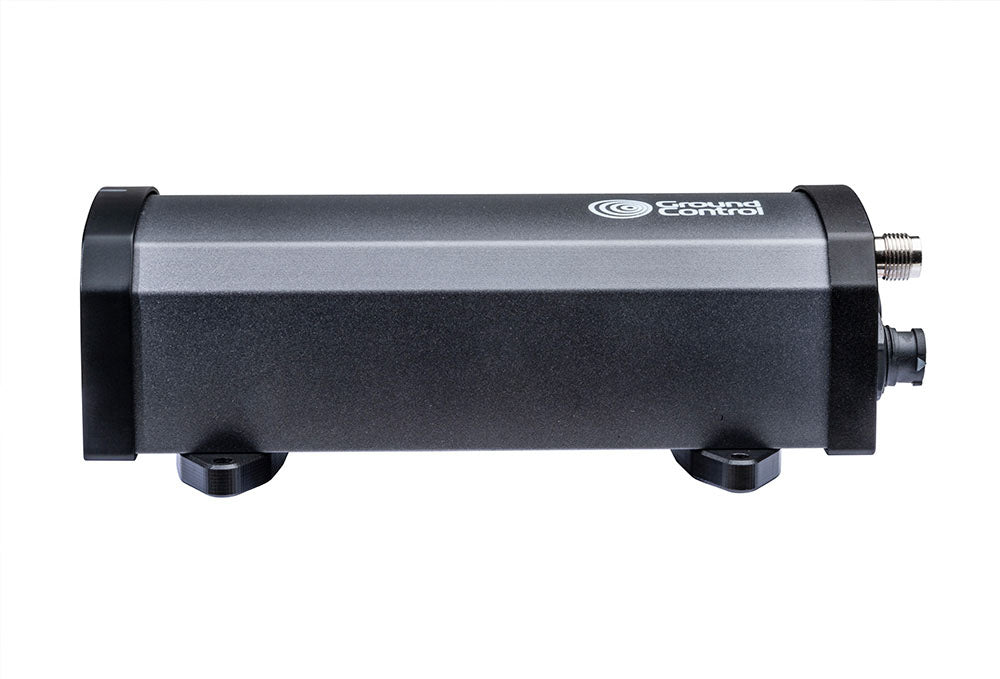

  • Enclosure: ruggedized aluminum casing
  • Environmental rating: IP66
  • Operating temperature: -40°C to +70°C
  • Shock and vibration: SAE J1455 compliant.

Cloudloop Platform

RockREMOTE Mini works with Cloudloop, Ground Control’s platform for managing satellite IoT devices, services, usage, and data.

Use Cloudloop to configure and provision devices, monitor usage, manage alerts, review account activity, and control network settings such as firewalls. Cloudloop Data can route payloads into your own systems using webhooks, email, MQTT, or API integrations.

For developers, the useful bit is that the satellite service layer is already handled. You can connect RockREMOTE Mini to your application without building the device management, routing, and subscription infrastructure from scratch.
Discover CloudloopCloudloop Developer Docs

What’s In The Box

1 x RockREMOTE Mini terminal (with pre-installed SIM card)
1 x 2-meter 12-core GPIO/Power/Serial interface cable
1 x 2-meter circular 8-pin to RJ45 Ethernet adapter cable

Resources / Quick Links

RockREMOTE Mini

FP-RR-MINI

Frequently Asked questions

No, RockREMOTE Mini / Mini OEM requires the connection of external antennas to establish communication links. You must attach an approved external Iridium Certus 100 antenna to the TNC female connector port, and a compliant active or passive GNSS antenna to the SMA female port.

No. While the terminal arrives with an unactivated Iridium satellite SIM card pre-installed inside the 2FF layout slot, all airtime configurations and data profiles are handled independently. A matching Iridium Certus 100 or IMT billing plan must be provisioned via your Cloudloop dashboard profile before the terminal can authenticate and pass field data over the network.

External computers, data loggers, or field microcontrollers can communicate over the wired 10/100 Ethernet port using standard TCP/UDP IP networks. Alternatively, host processors can manage data transfers and transmit system commands through direct serial lines supporting hardware-selectable RS232 or RS485 modes brought out via the included multi-core cable assembly.

Local network parameters, WAN/LAN data balancing laws, outbound/inbound port filtering rules, and port forwarding structures are modified by loading a user configuration file or sending commands wirelessly over Bluetooth Low Energy (BLE 5.0) utilizing our local configuration API frameworks or companion software app
