Iridium Certus Passive Antenna
Iridium Certus Passive Antenna

Description

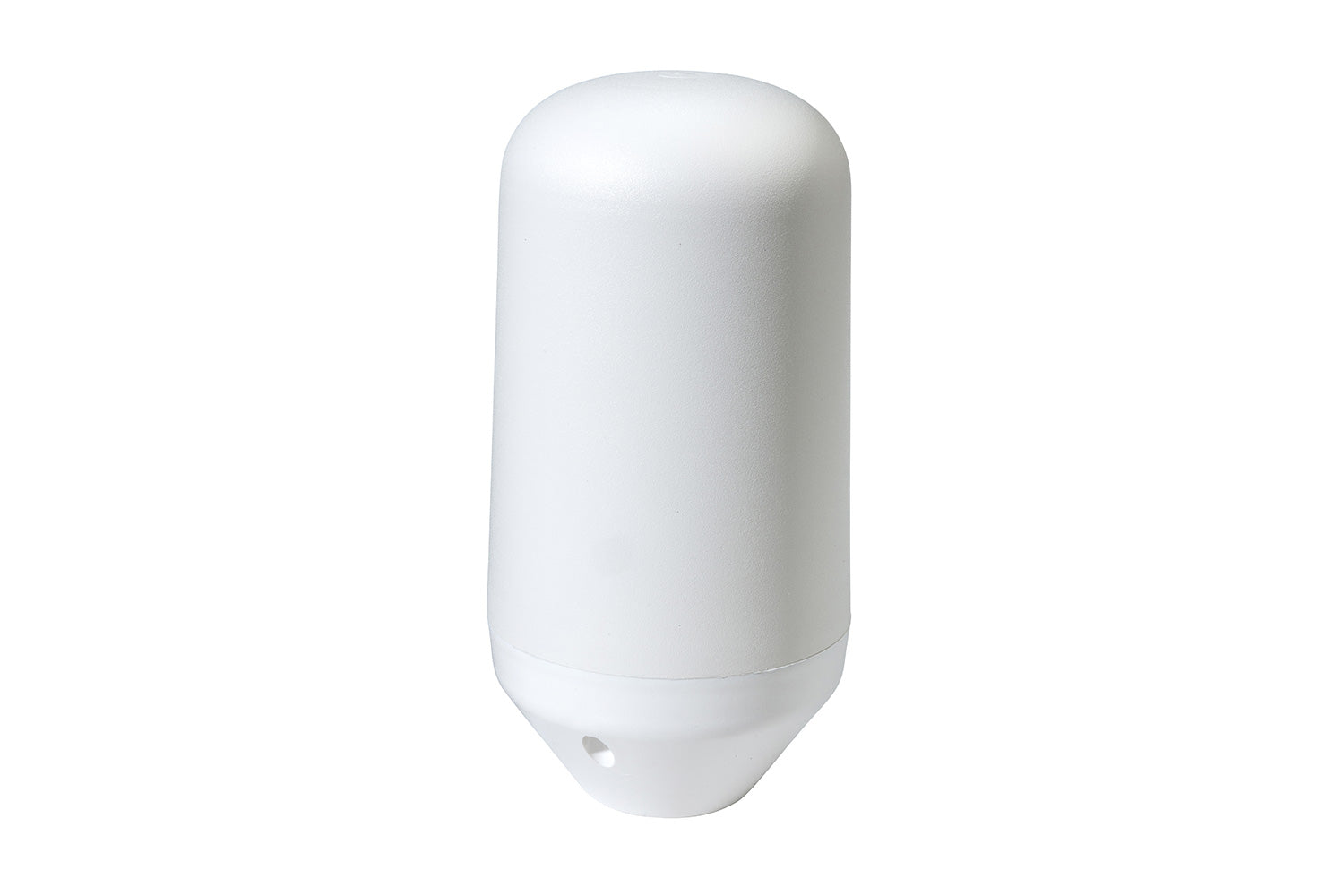

The Iridium Certus passive antenna delivers reliable, continuous L-band data transmission across the global Iridium satellite network. Operating with an omni-directional radiation pattern, it eliminates the need for manual pointing or active tracking mechanisms, ensuring dependable data throughput for remote fixed or mobile industrial installations with an unobstructed view of the sky.


This hardware component is a direct replacement unit for the antenna supplied with RockREMOTE and RockREMOTE Rugged terminal deployments.


It's recommended antenna choice for integration with both the RockREMOTE Mini and RockREMOTE Mini OEM products, providing a validated RF connection path for space-constrained developer designs.

Key Features

Completely passive antenna design requiring zero external power.

Omni-directional tracking removes satellite alignment or direction constraints.

Heavy-duty low-loss radome construction maximizes signal delivery in all weather conditions.

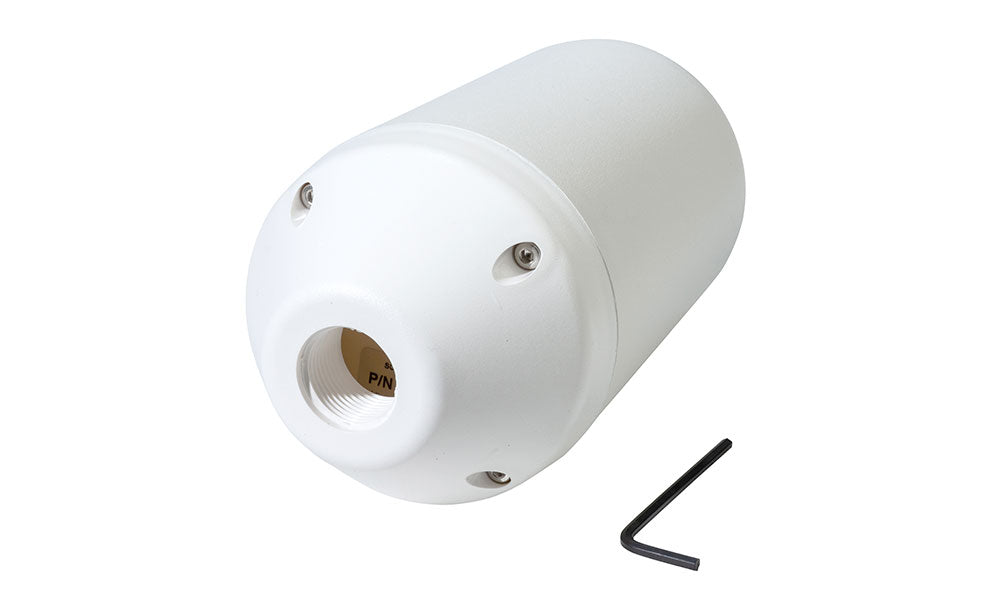

Standardized mounting interface fits any US-style mounting bracket with a 1″-14NF threaded stud.

Rugged white housing built to withstand severe environmental exposure.

Tuned explicitly for Iridium L-Band transceivers operating between 1616 MHz and 1626.5 MHz.

Tech Specifications

  • Frequency Range: 1616 – 1626.5 MHz (L-band)
  • Impedance: 50 ohm
  • VSWR: < 2.0
  • Polarization: RHCP (Right-Hand Circular Polarization)
  • Axial Ratio: < 3.5 dB
  • Peak Gain: 2 dBic
  • Height: 150 mm (191.5 mm total height with standard mounting base included)
  • Diameter: 95 mm
  • Operating Temperature: -40°C to +70°C
  • RF Interface: N-female connector
  • Ingress Rating : IP68

Iridium Certus Passive Antenna

IRIS-ANT-9770

$110.00
