Antenna Mounting Kit for RockREMOTE
Antenna Mounting Kit for RockREMOTE

Description

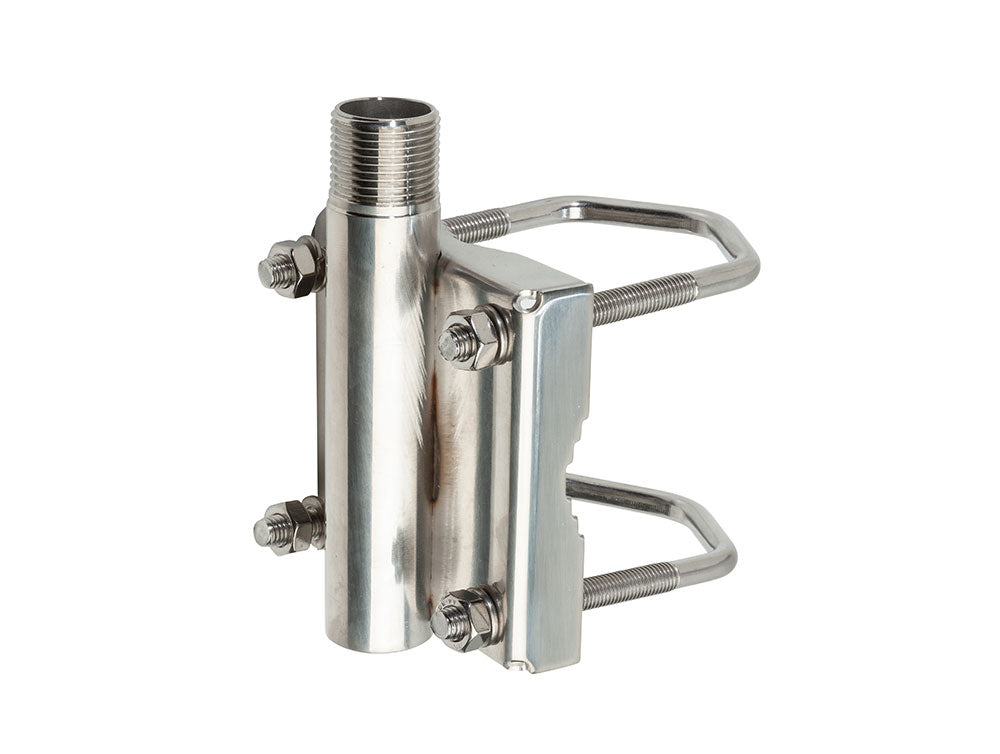

The Antenna Mounting Kit for RockREMOTE provides a stable mechanical mounting solution for deploying external satellite antennas in remote environments. This component is specifically dimensioned to interface with the standard omni-directional passive antenna supplied with RockREMOTE and RockREMOTE Rugged terminals.


Constructed to endure outdoor atmospheric conditions, this bracket simplifies physical deployment on marine vessels, utility poles, or industrial mounting infrastructure. It ensures rigid, long term mechanical fastening without degrading RF performance or compromising structural stability.

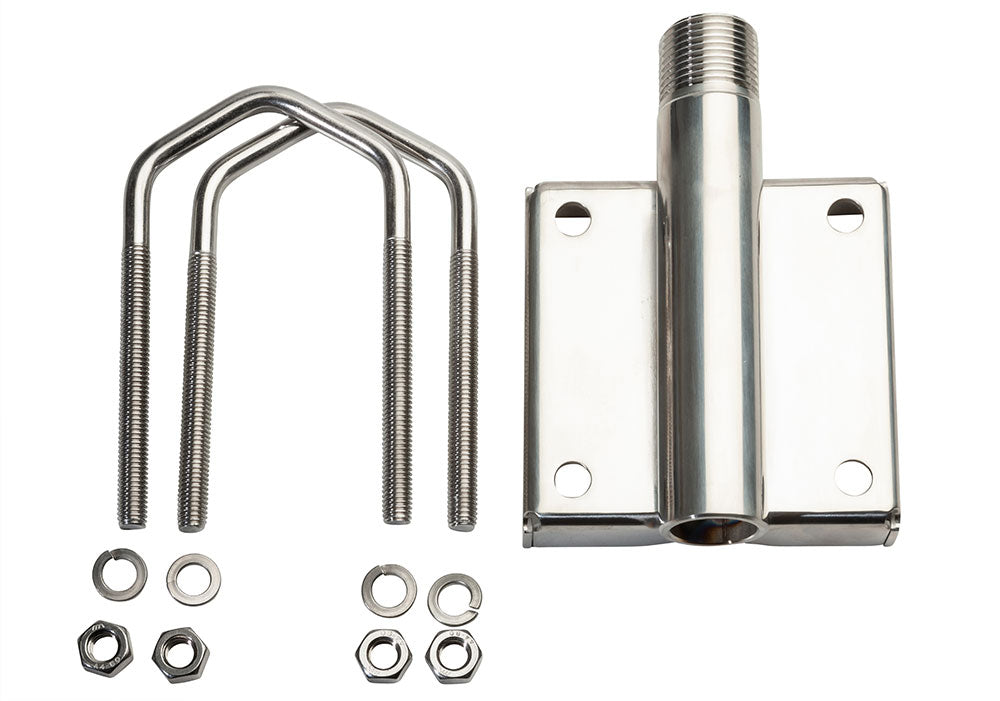

By standardizing the physical interface, hardware developers can execute field installations efficiently across both fixed and mobile settings. The kit includes the structural bracket components necessary to firmly bolt down the antenna assembly.

Key Features

  • Designed specifically for the standard RockREMOTE external omni-directional antenna.
  • High-stability mechanical fixture suited for fixed, semi-fixed, and mobile field use cases.
  • Standardizes installation layout to preserve line-of-sight access to the LEO satellite network.
  • Heavy-duty construction built for permanent outdoor deployment in industrial environments.
  • Minimizes strain on connected RF cable assemblies by stabilizing the antenna base.

Tech Specifications

  • Hardware Type: Passive mechanical mounting accessory
  • Application Compatibility: RockREMOTE / RockREMOTE Rugged standard antennas (IRIS-ANT-9770)
  • Mounting Options: Pole mount, bulkhead mount, or marine railing structures
  • Thread Interface Compatibility: Matches standard 1″-14NF threaded stud configurations
  • Environmental Tolerance: Multi-environment outdoor and maritime exposure rating

Antenna Mounting Kit for RockREMOTE

MISC-MARMOUNT

$40.00
$40.00
Sale Sold out
Taxes included.
Inquire

Frequently Asked questions

This bracket kit is dimensioned exclusively for the standard white omni-directional passive L-band antenna supplied with the RockREMOTE and RockREMOTE Rugged hardware devices.

No. This product is strictly the mechanical bracket assembly. The low-loss LMR400 antenna cable and the passive radome antenna itself are supplied standard with your terminal order or can be procured separately as electrical replacements.

Yes. The bracket provides a rigid mechanical latching point optimized to secure the antenna housing against environmental wind loading, marine vessel pitching, and common industrial structural vibrations.

The mount integrates directly with the US-style 1″-14NF threaded stud base built into the approved RockREMOTE terminal antenna series.
