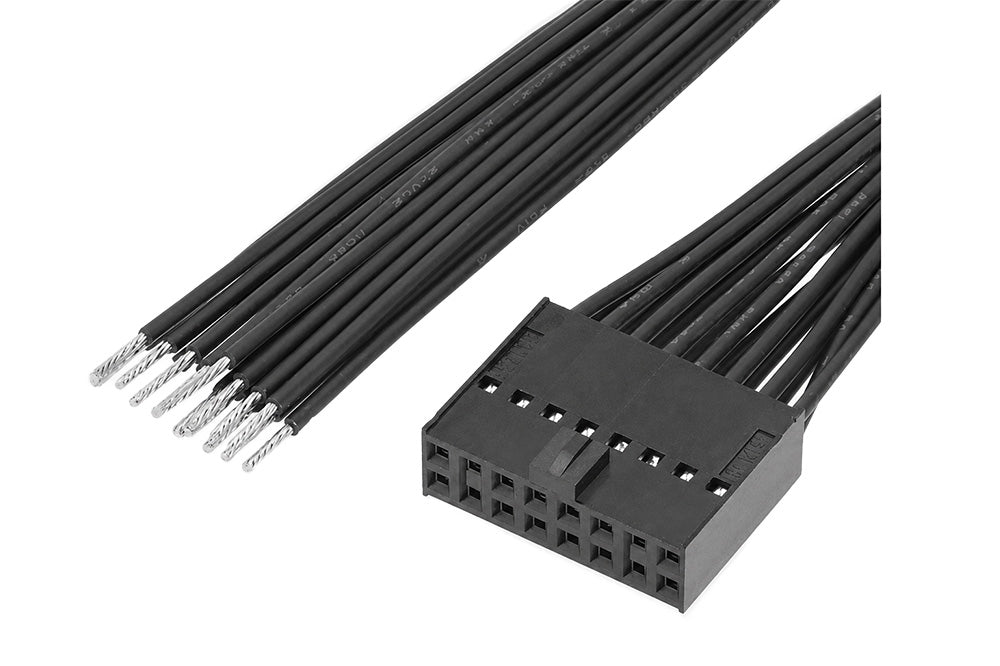

RockBLOCK 9704 300mm Female to Pigtail Cable

Description

The 300 mm Female to Pigtail Cable makes it easier to connect a RockBLOCK 9704 to your own electronics.

One end has the 16-way female connector needed for the RockBLOCK 9704 board. The other end has pre-stripped, unterminated wires, so you can route the lines into a terminal block, breadboard, prototype circuit, or custom PCB without building the connector yourself.

Use it during development, testing, or embedded integration when you need direct access to the RockBLOCK 9704 interface lines, including UART, power, battery input, and GPIO.

Key Features

Pre-terminated 16-way female Molex (C-Grid III) connector matching the RockBLOCK 9704 hardware pin configuration.

Unterminated, pre-stripped pigtail tail end enables flexible connection layout options.

300mm wire length provides clear line management and relieves physical tension inside hardware enclosures.

Supplies physical wiring pathways for up to 5 inputs and 3 outputs from the module's GPIO structure.

Direct compatibility with standard 0.1-inch (2.54mm) pitch multi-strand pin headers.

Reduces engineering preparation time by replacing custom manual wire-crimping workflows.

Tech Specifications

  • Total Length: 300 mm
  • Connector Type (End 1): 16-way female Molex (C-Grid III housing)
  • Connector Type (End 2): Unterminated / Bare Wire Pigtail
  • Header Pitch Compatibility: 0.1 inch (2.54 mm) pitch
  • Wire Type: Multi-strand flexible conductor
  • Supported Interfaces: DC input, battery rails, TTL UART lines, and GPIO pins
  • Hardware Compatibility: RockBLOCK 9704 module series

RockBLOCK 9704 300mm Female to Pigtail Cable

ACC-RB9704-TAILCAB-300MM

$15.00
$15.00
Sale Sold out
Taxes included.
Inquire
