1m LMR240 M2M SMA with F2F SMA Bulkhead Connector
1m LMR240 M2M SMA with F2F SMA Bulkhead Connector

Description

This 1 m SMA cable kit connects a RockBLOCK 9704 SMA board to an external Iridium helical antenna.



The kit includes an LMR-240 coaxial cable with SMA male connectors at both ends, plus an SMA female-to-female bulkhead adapter for panel-through mounting. Use it when the RockBLOCK 9704 is inside an enclosure and the antenna needs to be mounted externally with a clear view of the sky.



The cable is suitable for Iridium RF connections in the 1616–1626.5 MHz band and helps keep the antenna path tidy, secure, and accessible during prototype builds or enclosure integrations.

Key Features

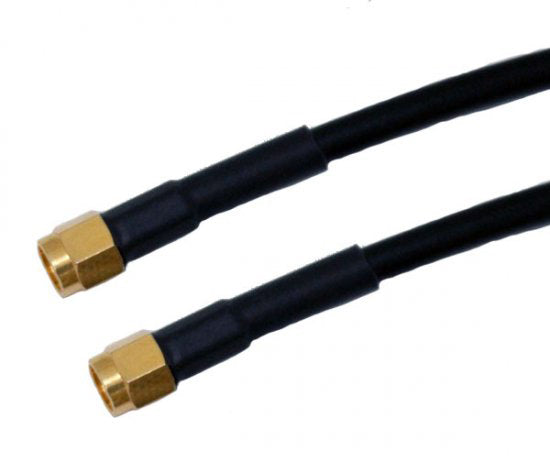

Pre-terminated 1-meter LMR-240 coaxial cable for low-attenuation RF paths.

Dual SMA male (M2M) connectors for reliable RF interface stability.

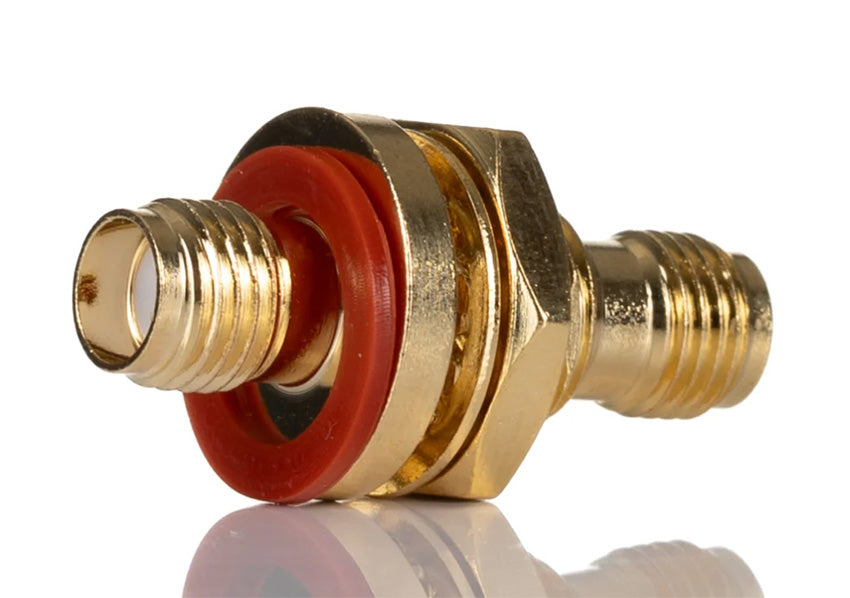

Included female-to-female (F2F) SMA bulkhead adapter for panel pass-through installations.

Low-loss characteristics optimized specifically for satellite IoT operational bands.

High-frequency shielding capability tested for stable performance up to 18 GHz.

High flexibility and durability optimized for deployment within harsh external enclosures.

Tech Specifications

  • Cable Type: LMR-240 Coaxial
  • Length: 1.0 meter
  • Cable Attenuation: 0.34 dB/m at Iridium band frequencies (1616 MHz – 1626.5 MHz)
  • Connector Loss: 0.1 dB per connector interface
  • Connectors (Cable): Dual SMA Male (M2M)
  • Bulkhead Adapter: SMA Female to SMA Female (F2F)
  • Impedance: 50 Ω
  • Maximum Rated Frequency: Up to 18 GHz
  • Operating Temperature: -40°C to +70°C
  • Hardware Compatibility: RockBLOCK 9704 SMA, Helical Iridium Certified Passive Antenna

1m LMR240 M2M SMA with F2F SMA Bulkhead Connector

ACC-CAB-LMR240-SMA-BULKCON-1M

$38.00
