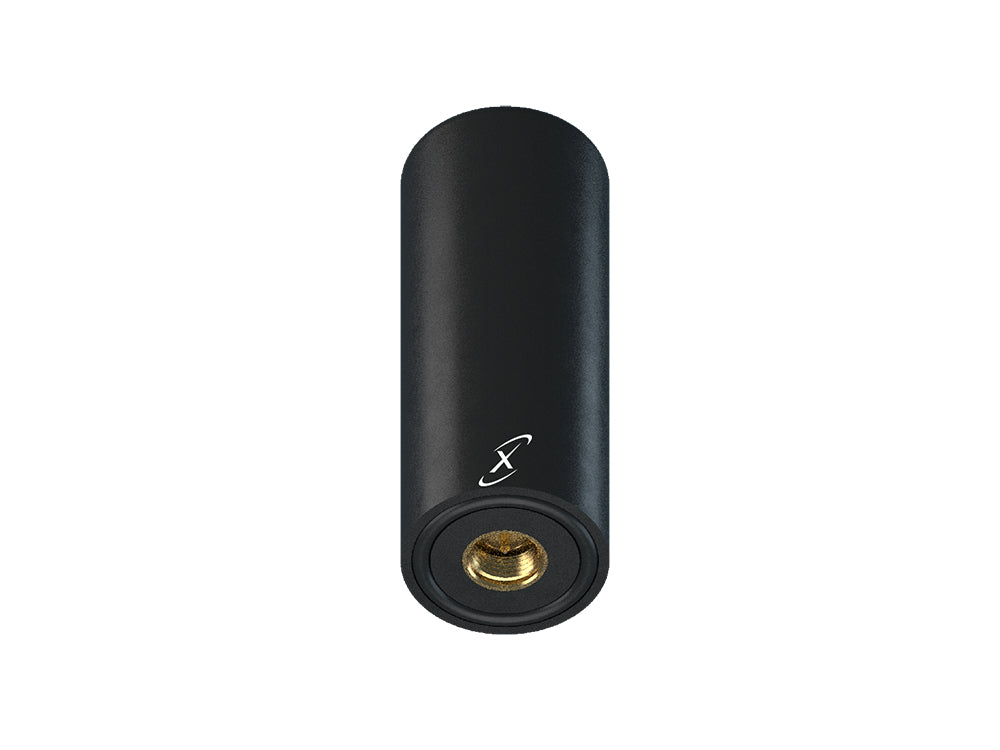

Helical Iridium Certified Passive Antenna

Description

The Helical Iridium Certified Passive Antenna is an external antenna for RockBLOCK 9704 or RockBLOCK 9603/9602 SMA installations.



It's tuned for the Iridium frequency band and connects to the RockBLOCK 9704 or RockBLOCK 9603/9602 modules through a suitable SMA cable, such as the 1 m SMA cable kit. Use it when the board is inside an enclosure and the antenna needs to be mounted externally with a clear view of the sky.



The antenna uses Maxtena Helicore technology and is ground-plane independent, giving you more flexibility in how and where it is mounted. The ABS/PC housing is IP67 rated, so it can be used in outdoor or exposed installations when mounted correctly.

Key Features

  • Iridium Network Optimized: Fully certified for high-quality reception across Short Burst Data (SBD) and Iridium Messaging Transport network environments.
  • Ground Plane Independent: Maintains full efficiency and signal integrity without requiring a localized metal ground plane.
  • Helicore Technology: Proprietary internal element structure provides exceptional pattern control and high polarization purity.
  • IP67 Ingress Protection: Rugged, weather-sealed housing protects against dust and water immersion whether mounted or unmounted.
  • Low Axial Ratio: Strict axial ratio thresholds (0.2 dB typical) minimize signal fading caused by cross-polarization.

Tech Specifications

  • Frequency Range: 1616–1626.5 MHz
  • Antenna Element Peak Gain: 2.8 dBic (typical)
  • Polarization: Right Hand Circular Polarization (RHCP)
  • Axial Ratio: 0.2 dB (typical) / 0.5 dB (max)
  • VSWR: 1.5 (max)
  • Impedance: 50 ohms
  • RF Connector: SMA male
  • Dimensions: 49 mm (height) × 19 mm (diameter)
  • Environmental Rating: IP67
  • Operating Temperature: -40°C to +85°C

Resources / Quick Links

Helical Iridium Certified Passive Antenna
