Description

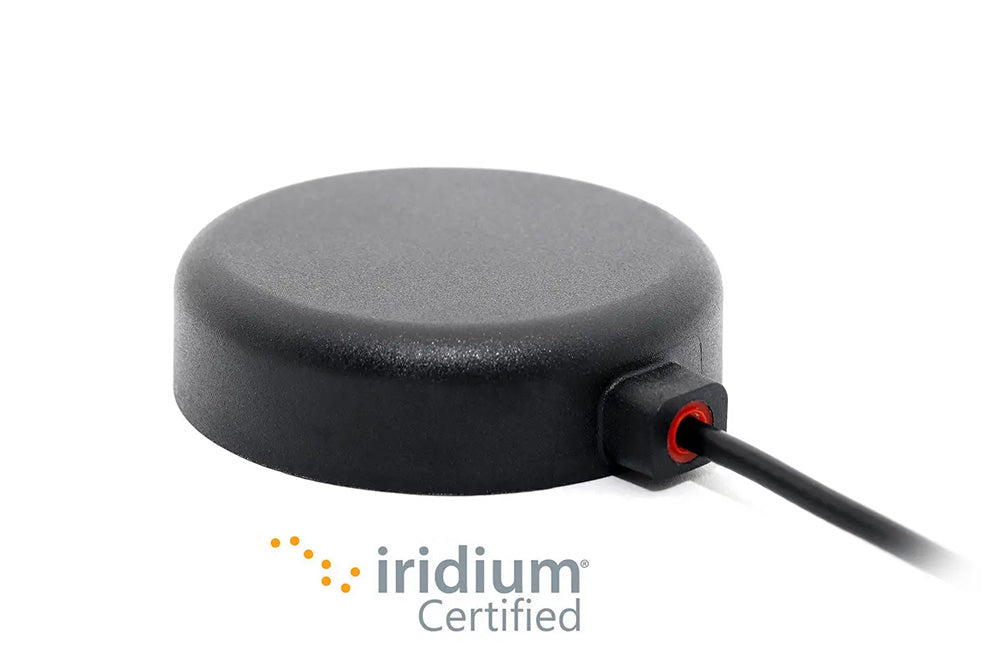

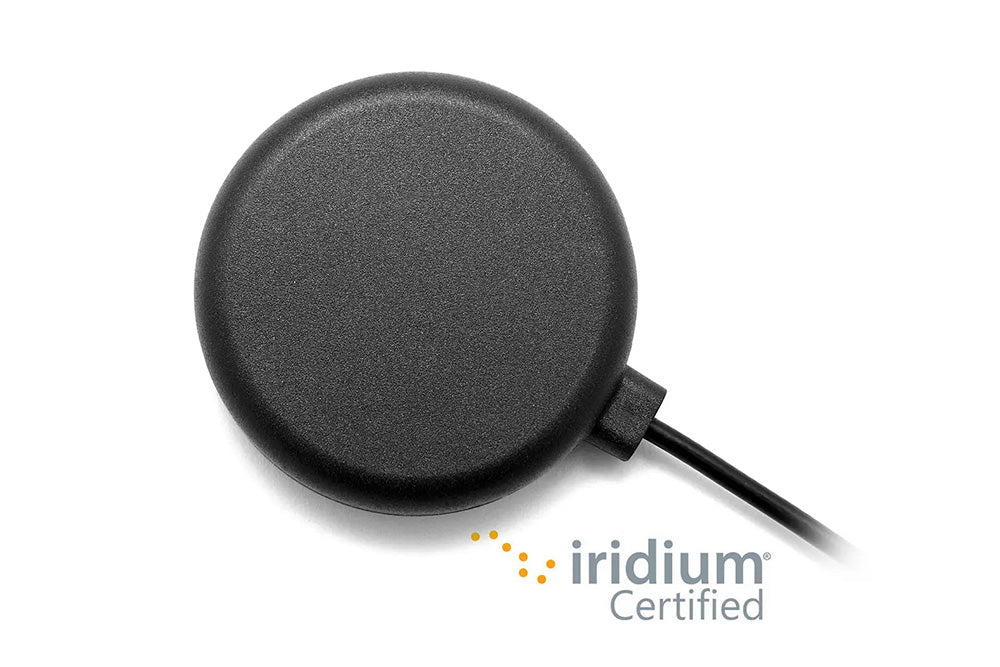

The 2J7426MPz is a passive external Iridium patch antenna for RockBLOCK and other compatible satellite IoT hardware.



Use it when your device is inside an enclosure, cabinet, vehicle, or piece of equipment, and the antenna needs to be mounted externally with a clear view of the sky. The integrated 1.8 m cable terminates in an SMA male connector, making it straightforward to connect to compatible boards and terminals.



The antenna can be mounted magnetically on suitable metal surfaces, or converted for adhesive mounting on non-metallic surfaces. Its polycarbonate and ASA housing is designed for outdoor use, with resistance to UV exposure and changing environmental conditions.

Key Features

  • Iridium Commercial Certification: Fully certified by Iridium to meet stringent RF performance standards for global satellite tracking and messaging.
  • IP69 Ingress Protection: Waterproof and ruggedized housing built to withstand submersion, dust entry, high-pressure washes, and extreme weather.
  • Premium UV-Stabilized PC/ASA Build: Highly resistant to mechanical stress, thermal expansion, moisture accumulation, and prolonged sun exposure.
  • Dual Mounting Flexibility: Standard magnetic mount allows for immediate attachment or quick asset swapping, with simple conversion to an adhesive mount if required.
  • Low-Loss LL100 Coaxial Cable: Equipped with a standard 1.8-meter LL100 cable terminated with a standard SMA-Male connection interface for direct transceiver attachment.

Tech Specifications

  • Frequency Range: 1616 – 1626.5 MHz
  • Peak Gain: ~5.1 dBi
  • VSWR: ~1.1:1
  • Return Loss: ~-28.0 dB
  • Efficiency: ~82.3%
  • I/O Impedance: 50 Ohm
  • Radiation Pattern: Hemispherical
  • Polarization: RHCP (Right Hand Circular Polarized)
  • Dimensions: 14.7 mm (H) x 54 mm (Ø)
  • Operating Temperature: -40 to +85°C

Resources / Quick Links

External Iridium Patch Antenna

ACC-RB-IRI-PAT-ANT-2J

$30.00
$30.00
Sale Sold out
Taxes included.
Inquire

Frequently Asked questions

It is designed for direct connection to RockBLOCK 9602 and RockBLOCK 9603 models equipped with an SMA connector interface.

The antenna contains an internal magnetic plate suited for direct iron or steel vehicle surfaces. To mount it on non-magnetic enclosures like fiberglass or heavy plastics, an adhesive pad is secured directly over the magnetic face for structural attachment.

The integrated patch antenna on the RockBLOCK is sufficient if the module has an unshielded, direct view of the sky. If your system design requires placing the transceiver deep inside an industrial enclosure, underneath a metal barrier, or within a heavy structure, you must use this external antenna via the SMA connector to maintain network connectivity.
