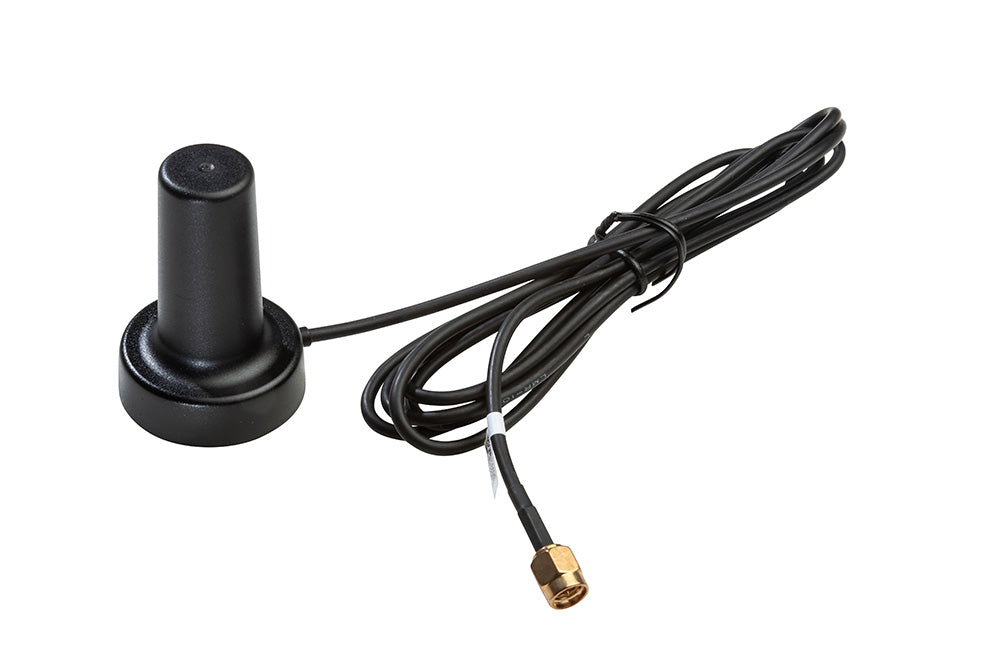

External Iridium Helical Antenna (1.5m)
External Iridium Helical Antenna (1.5m)

Description

The External Iridium Helical Antenna is a passive magnet-mount antenna for RockBLOCK 9602 and 9603 devices that need the antenna placed outside the main enclosure.



It's tuned for the Iridium frequency band and connects via a built-in 1.5 m coaxial cable with SMA connector. Use it when the RockBLOCK board or host device is inside a box, cabinet, vehicle, or piece of equipment, and the antenna needs to be mounted somewhere with a clearer view of the sky.



The magnetic base makes it easy to attach to a suitable metal surface for development, testing, or field installation. The antenna is ground-plane independent, so it can also be used in setups where a conventional ground plane is not available.

Key Features

  • Optimized strictly for the Iridium satellite network
  • Built on proprietary Maxtena HeliCore® technology
  • Completely ground-plane independent
  • Integrated high-strength magnet mount

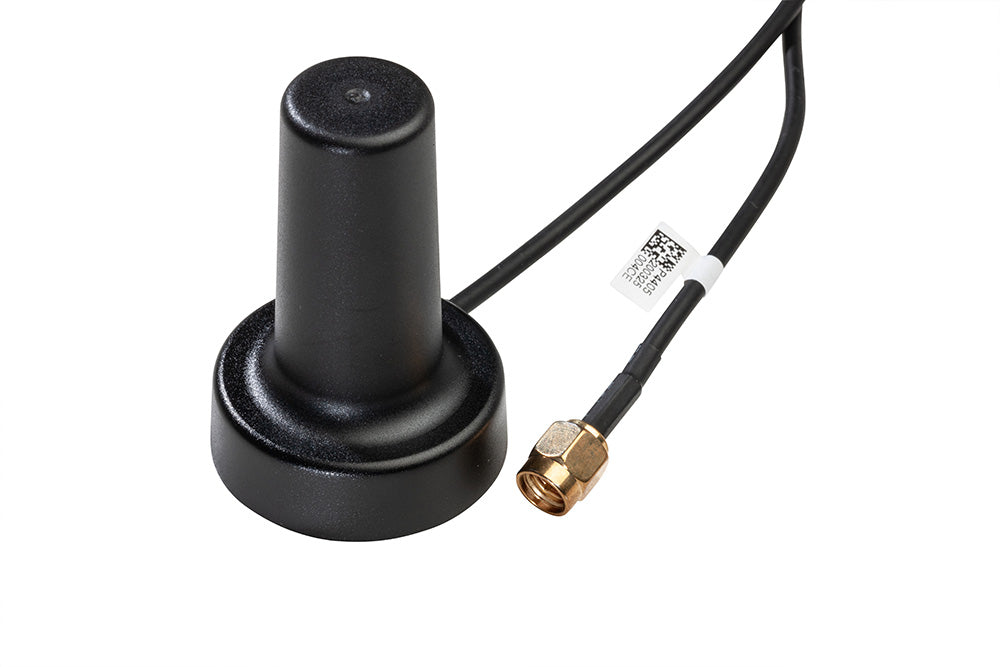

  • Built-in 1.5m LRM100 coaxial cable with an SMA connector

Tech Specifications

  • Frequency Range: 1616 - 1626 MHz
  • Antenna Type: Passive Helical
  • Connector Type: SMA Male
  • Cable Type: LRM100 Coaxial (1.5m)
  • Mounting Method: Integrated magnet
  • Weight: 52 g

Resources / Quick Links

External Iridium Helical Antenna (1.5m)

ACC-RB-IRI-HEL-ANT

$126.00
$126.00
Sale Sold out
Taxes included.
Inquire

Frequently Asked questions

It is designed for direct connection to RockBLOCK 9602 and RockBLOCK 9603 models equipped with an SMA connector interface.

No. The antenna is fully ground-plane independent, meaning it will maintain optimal operational performance when mounted on non-metallic enclosures

The antenna ships with an integrated 1.5m LRM100 coaxial cable that terminates in a standard SMA connector
