RockBLOCK Pro OEM Developer Board

Description

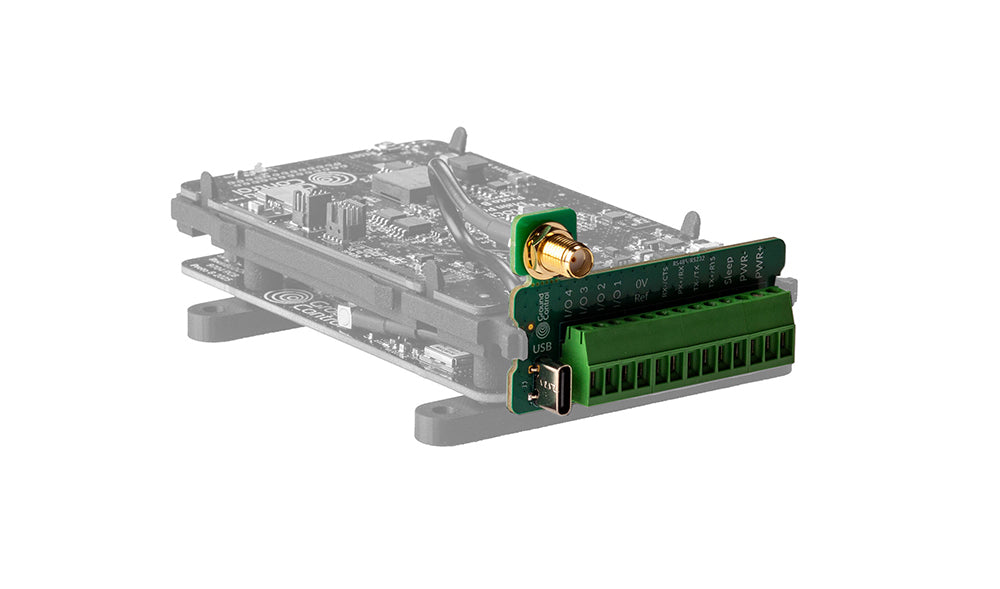

Note: RockBLOCK Pro OEM (greyed out) is pictured for context, and must be purchased separately.



The RockBLOCK Pro OEM Developer Board provides a straightforward way to evaluate and develop with the RockBLOCK Pro OEM before integrating it into your own hardware.



The board provides access to the functions exposed by the OEM module. It can be used during development and prototyping, and also provides a reference design to support your own RockBLOCK Pro OEM integration.


The board also includes a position for mounting an SMA connector, helping developers create a practical test setup around the Pro OEM.

Key Features

  • Designed for use with RockBLOCK Pro OEM during early development phases
  • Connects via the Pro OEM 30-pin header and access to all functions exposed through the 30-pin connector
  • Includes USB-C access
  • Access to four configurable GPIO channels.
  • Position provided for mounting an SMA connector (not supplied)
  • Supports evaluation, development and prototyping
    Provides a reference design for OEM integration (schematic available in the developer docs).

Tech Specifications

  • Compatible Product: RockBLOCK Pro OEM
  • Interface: 30-way, 2 x 15, 2.0 mm pitch header
  • USB: USB-C access
  • Antenna Connector Provision: Position for SMA connector
  • Developer Board Type: OEM interface PCBA

Resources / Quick Links

RockBLOCK Pro OEM Developer Board

$59.00
$59.00
Sale Sold out
Inquire

Frequently Asked questions

The developer board lets you access and trial the functions available through the RockBLOCK Pro OEM 30-pin connector. It's intended for development, evaluation and prototyping only, and can also be used as a reference when designing your own interface hardware.

It's primarily intended to help customers trial RockBLOCK Pro OEM, and to provide a reference design. Customers integrating the Pro OEM into their own equipment remain responsible for their final mechanical, electrical and regulatory design.

Yes. The interface board must be fitted with the terminals along the upper edge, as shown in the RockBLOCK Pro OEM documentation. Fitting the board upside down on the 30-pin header will damage the OEM board.

No. The RockBLOCK Pro OEM uses a different 30-pin pinout from the RockREMOTE Mini OEM, so the two developer boards should not be treated as interchangeable.
