Description

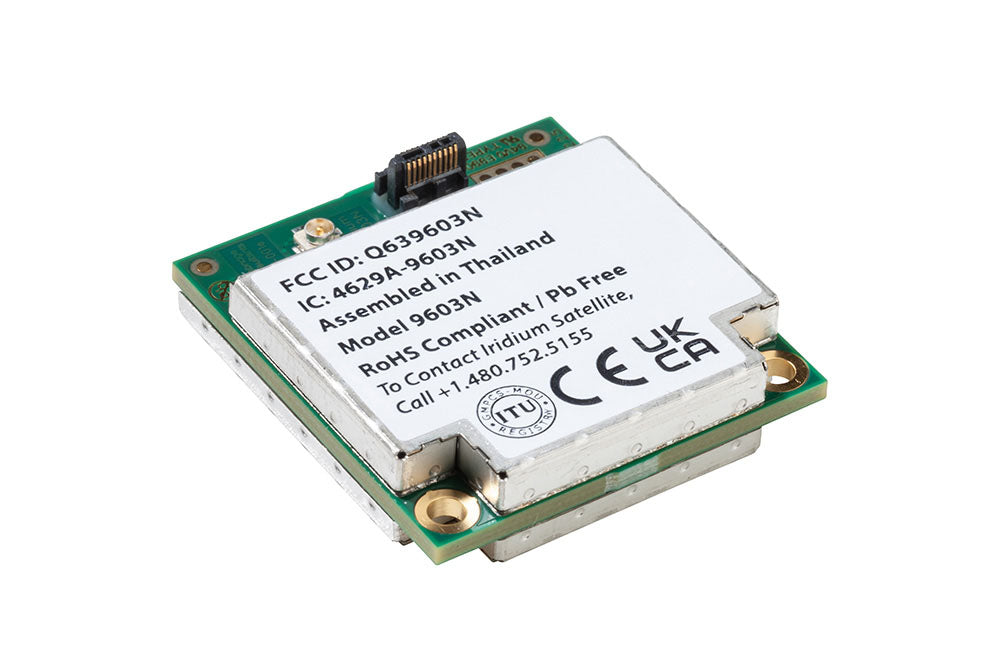

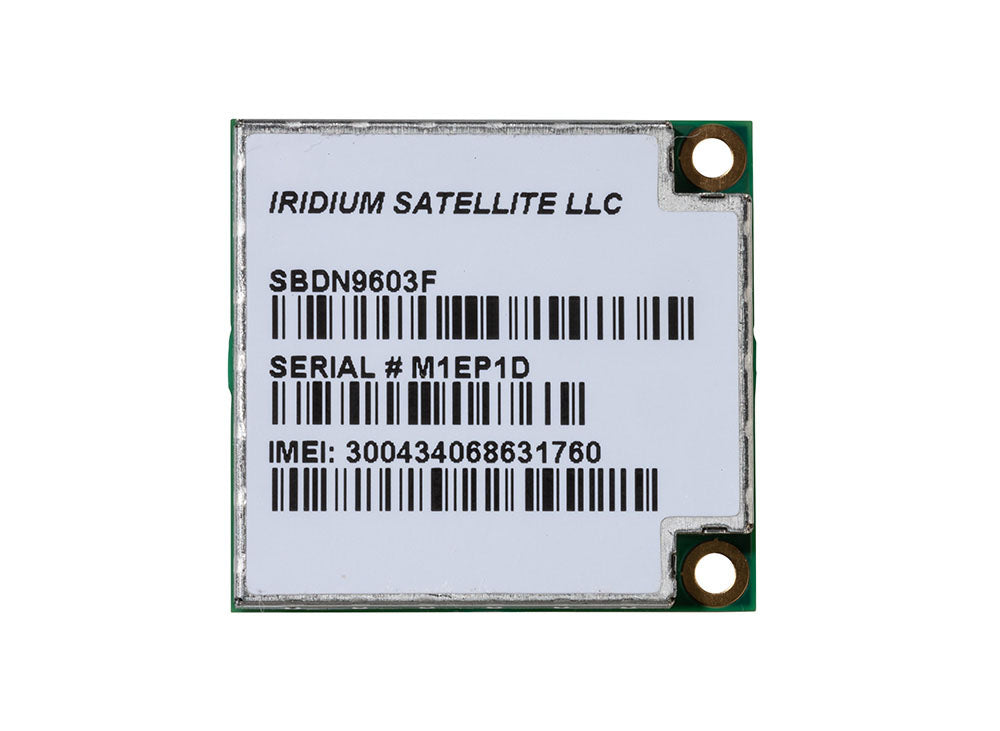

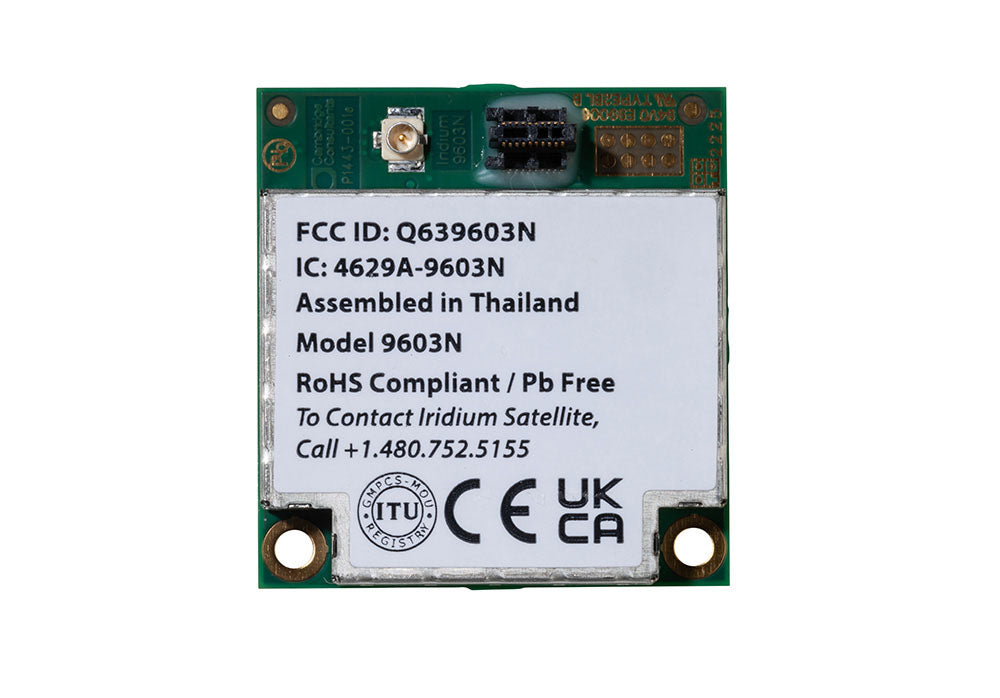

Iridium 9603N is a bare SBD transceiver for product teams designing low data satellite messaging directly into their own hardware.



It gives your device access to Iridium Short Burst Data for compact, two way satellite messages: telemetry, alerts, status updates, position reports, and remote commands. It's best suited to commercial hardware integrations where your team wants control over the PCB, power supply, RF path, antenna, enclosure, firmware, and certification route.



This is the modem module, not a developer board. Your host system will need to manage the serial interface, AT command control, power design, antenna integration, and physical mounting around the transceiver.



If you want the same SBD service in an easier development format, start with RockBLOCK 9603 instead. RockBLOCK 9603 builds around the 9603N transceiver and adds power handling, antenna options, breakout connectivity, and a more straightforward path for prototyping, field trials, and lower volume deployments.

Key Features

  • True Global SBD Connectivity: Leverages the Low Earth Orbit Iridium satellite network for cross-globe data transport.
  • Two Way Messaging Capabilities: Supports direct bilateral transmissions with a message size limit of 340 bytes for outgoing data and 270 bytes for incoming packets.
  • Low Latency Performance: Achieves message transit times under 10 seconds through low altitude network relays.
  • AT Command Interface: Operates via standard software AT command sequences for straightforward configuration across custom host systems.
  • Direct Application Routing: Transfers satellite packet data seamlessly via email routes or directly into target web-service APIs.

Tech Specifications

  • Network Protocol: Iridium Short Burst Data (SBD)
  • Data Capacity: 340 bytes transmit, 270 bytes receive per message
  • Input Voltage Range: 3.4V to 5.4V DC
  • Peak Current Consumption: Maximum 450mA during transmission phases
  • Sleep Mode Consumption: Minimum 100mA active baseline; software-driven sleep modes preserve field power resources
  • Control Command Set: Standard AT command sequence
  • Operational Temperature Scope: -45°C to 85°C
  • Operating Humidity Limits: Less than or equal to 75% relative humidity
  • Environmental Sealing: Non-waterproof core module

Cloudloop Platform

Iridium 9603N integrates with Cloudloop for SBD message routing, usage monitoring, and subscription management.

Cloudloop Data routes SBD messages from your devices into your own systems, including APIs, webhooks, cloud services, and dashboards. Cloudloop Subscription Manager helps manage airtime, billing, usage alerts, and device status across deployed devices.
Discover Cloudloop

Resources / Quick Links

Iridium 9603N Transceiver

MISC-IRI-9603N-TRAN-R7

$174.00
$174.00
Sale Sold out
Taxes included.
Inquire

Frequently Asked questions

Iridium 9603N is the bare component transceiver intended for custom PCB fabrication and deep embedded system layout integration.

RockBLOCK 9603 is an integrated developer board containing this transceiver along with built-in power regulators, a choice of patch or SMA antenna pathways, and direct header or USB connectivity ports to accelerate prototyping timelines.

In ideal conditions, an already-powered device can complete an Iridium SBD session roughly every 10 seconds. That assumes a clear view of the sky, good antenna placement, and a successful session on the first attempt.

We would not recommend designing your application around guaranteed 10 second reporting. In real installations, buildings, terrain, vehicle bodywork, ship structures, trees, antenna placement, RF interference, and satellite movement can all affect how quickly a session completes. A restricted view of the sky can extend transmission time from seconds to minutes.

For most applications, it's better to design around retries and occasional delays. Send when you have data to report, retry quickly if the first attempt fails, then back off to a longer retry interval if needed. SBD is well suited to compact telemetry, alerts, status updates, position reports, and commands, but it shouldn't be treated as a fixed-interval real time link.

As a rule of thumb: 10 seconds is a best case session time, not a guaranteed reporting interval.

No, not unless a specific development kit or bundle says otherwise.

For a bare modem, you are responsible for selecting and integrating the correct antenna system. Antenna choice, cable loss, placement, ground plane, enclosure materials, and installation environment can all affect performance and certification.

Yes. Bare Iridium modems using SBD or IMT can work with Cloudloop services, including Cloudloop Data and Cloudloop Subscription Manager.

Cloudloop Data handles message routing between your devices and your application, API, webhook, cloud service, storage, queue, or dashboard.

Cloudloop Subscription Manager handles the operational side: airtime plans, billing, usage monitoring, alerts, suspension, and device status across your deployed devices.

Setup depends on the modem, service type, airtime plan, and account structure, so contact us if you are planning a bare modem integration.
